Sea Harrier FA2 - Sidewinders & AMRAAMs

Sea Harrier FA2 - Sidewinders & AMRAAMs

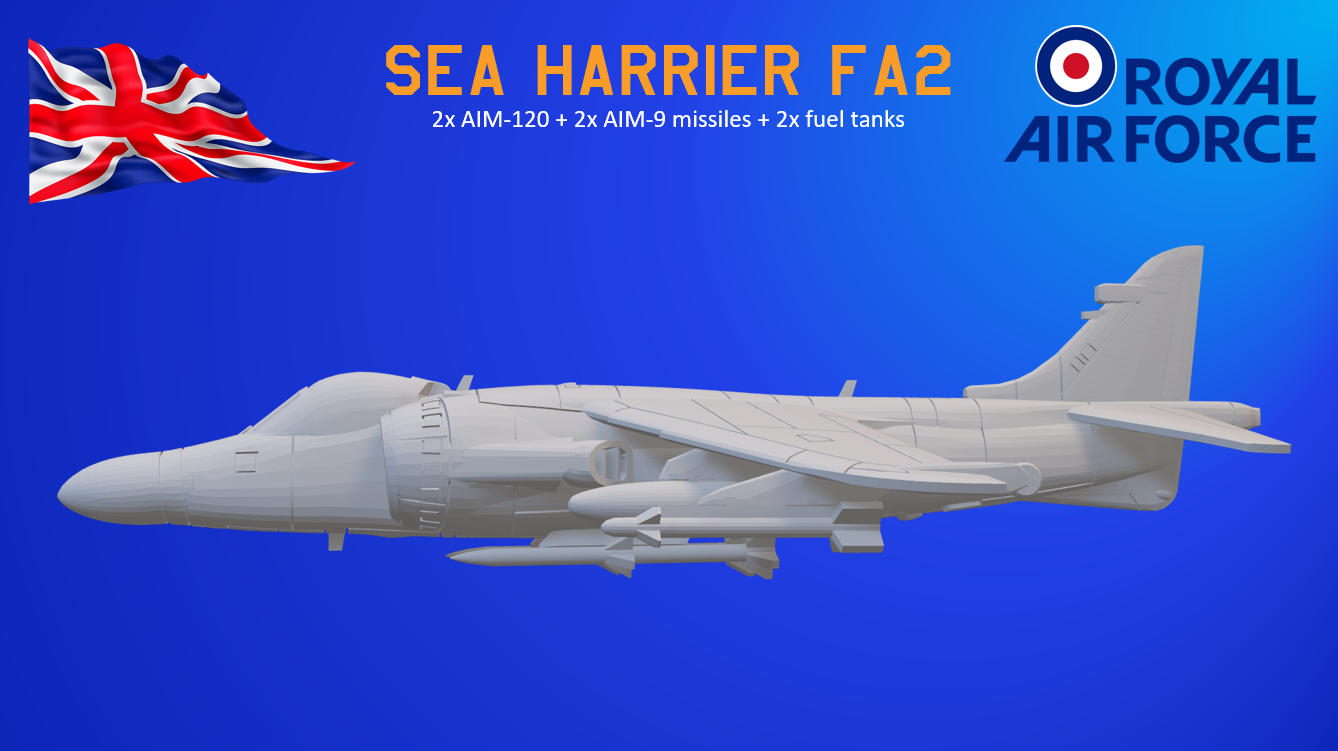

Detailed 1-200 scale 3D printed BAe Sea Harrier jet representing the Royal Navy Fleet Air Arm with Sidewinders and AMRAAMs.


Available Scales
1-200
1-300
1-285 Print on Demand
1-144 Print on Demand


Historical Context
The Sea Harrier FA2 (Fighter, Attack 2) was a highly upgraded variant of the original V/STOL (Vertical/Short Take-Off and Landing) jump jet, designed primarily for carrier-based fleet air defense for the British Royal Navy. Introduced in 1993, it featured advanced sensors and beyond-visual-range (BVR) weaponry that made it one of the most capable naval fighters of its era.
Key Upgrades and Capabilities
The FA2 was developed based on lessons from the 1982 Falklands War, where the earlier FRS1 variant excelled in close-range combat but lacked long-range interception capabilities.
Blue Vixen Radar: The most significant upgrade was the installation of the BAE Systems Blue Vixen pulse-Doppler radar. This all-weather radar provided look-down/shoot-down capability and could track multiple targets simultaneously.
AMRAAM Integration: The FA2 was the first UK aircraft to carry the AIM-120 AMRAAM. This combination of radar and missile allowed for BVR engagement, a massive leap over the Sidewinder-only capability of its predecessor.
Pegasus Mk 106 Engine: It was powered by the Rolls-Royce Pegasus 106 turbofan engine, which provided roughly 21,500 lbf of thrust and was optimized for better performance in hotter climates.
Improved Cockpit: The aircraft featured a "glass cockpit" with dual head-down displays (HDDs) and a modernized head-up display (HUD), streamlining the workload for its single pilot.
Performance Specifications
According to data from Naval Technology and the Pima Air & Space Museum:
Maximum Speed: Mach 0.95 to Mach 1.25 at high altitude (approximately 735 mph).
Service Ceiling: 51,000 feet.
Combat Range: Approximately 620 miles.
Armament:
Guns: Two 30mm ADEN cannon pods under the fuselage.
Hardpoints: Five total; capable of carrying AIM-120 AMRAAM, AIM-9 Sidewinder, Sea Eagle anti-ship missiles, and ALARM anti-radiation missiles.


Key Aspects of the BAe Sea Harrier History:
Development and Origin: The Sea Harrier adapted the Harrier V/STOL concept for fleet air defense and carrier operations, adding naval avionics, radar, and a revised cockpit. The later FA2 introduced a major radar and weapons upgrade.
Military and Combat Operations: Sea Harrier FRS1s achieved their best-known combat record during the 1982 Falklands War. Later Sea Harriers also supported British operations in the Balkans and other post-Cold War deployments.
Foreign Operators: India operated its own Sea Harrier FRS.51 variant, distinct from the British FRS1 and FA2 represented here.
Upgrades and Retirement: The FRS1 was rebuilt into the FA2 with the Blue Vixen radar and AMRAAM capability. British Sea Harrier service ended in 2006.
Design and Armament: Weapons included 30 mm ADEN cannon pods, AIM-9 Sidewinders, bombs and rockets; the FA2 added AIM-120 AMRAAM beyond-visual-range capability.


This is an ErikGen design. We are an approved printer for EriKGen designs. His exquisite STLs can be purchased and self printed here: EriKGen Designs


About Flight Deck Decals 3D Prints
Flight Deck Decals 3D prints are created for gamers and modelers who expect exquisite detail, highest quality, and models that are ready to paint and put on the table.
Most aircraft are available in 1-300, 1-285, 1-200, and 1-144 scales
Printed using Flight Deck Decals' premium proprietary resin, created specifically for miniature aircraft
Excellent paint and primer adhesion compared with many lower-cost resins
Produced on high-resolution 8K or greater resin printers for exceptional detail and smooth layer reproduction
Fine, crisp surface detail with clean panel lines and scale-appropriate features
Carefully printed and inspected with the same attention to detail that has defined Flight Deck Decals for more than 10 years


Built by a Life Long Gamer, for Gamers
Flight Deck Decals wasn't created by a manufacturer looking for another market to enter.
I'm a lifelong gamer and modeler who built the store I always wished existed.
For more than a decade, the goal has remained the same: provide fellow hobbyists with the highest-quality decals and 3D printed miniatures available.
